Ortur R2 Support

related downloads

All downloads related to R2

2. Laser Module User Manual

The laser module user manual is an instruction manual that details the functions, installation and use of different laser module for the engraving machine.

3. Software Guide

Software Guide

The software guide is to be compatible with more operating systems and devices. Here you can download the software, learn the operation, and obtain parameters.



  • Ortur
  1. Support OS:IOS、Android
  2. Support Machines:OLM3 LE、OLM3、OLM H10、OLM H20、OLM F10、R2
  3. APK Download Link:
  4. User Manual Download Link:Ortur_UserManual_231214.pdf
  • LightBurn
  1. Support OS:Windows、Mac OS、Linux
  2. Support Machines:All Ortur laser engraving machines
  3. Download Link:LightBurn Download link
  • LaserGRBL
    1. Support OS:Windows from XP to Win 11
    2. Support Machines:All Ortur laser engraving machines
    3. Download Link:LaserGRBL Download link

4. Firmware Release

  • Specifications

  • Product Promotion

  • Tutorial videos

  • Support Videos

  • Finished video

  • Shorts Videos

Product

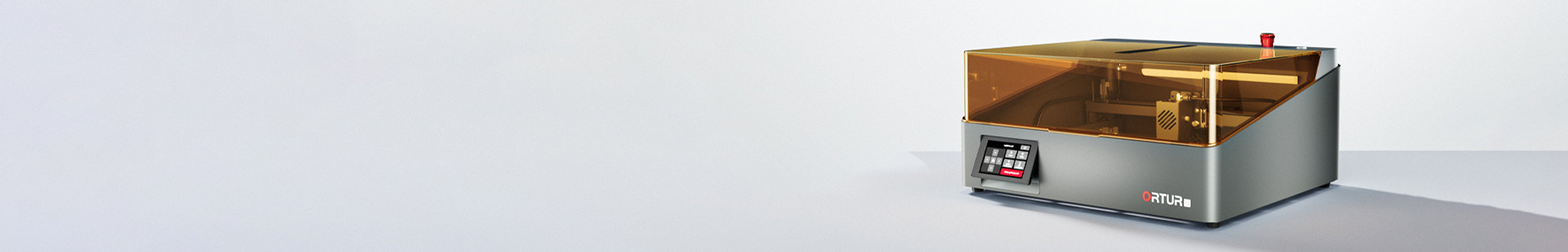

ORTUR R2

Product Material

Auminum

Product DIM.

/

Package DIM.

/

N.W.

/

G.W.

/

Shipping Method

Whole machine shipment

Product Feature

/

The photoelectric power is related to the laser module supporting the machine.

LR4-2B Peak Power: 80W
Optical Power: 2w
AC/DC Output: 24V 6A

LU3-10A(R2)   Peak Power: 96w
Optical Power: 10w
AC/DC Output: 24V 4A

LU3-20A(R2)   Peak Power: 144w
Optical Power: 20w
AC/DC Output: 24V 6A

Motor

Step Motor Nema 17 (X38/Y58mm)

Working Speed

20,000mm/min

Working Area

LR4-2B :X300*Y210mm
LU3-10A(R2):X300*Y210mm
LU3-20A(R2):X300*Y190mm

Extension Area(Optional)

/

Mainboard

OLM-ESP-F10-V2.9

Support Function

WIFI/APP/USB/TF Card

Security Function

1.Active position protection
2.Tilt motion detection
3.Anti-crash watchdog mechanism
4.Laser irradiation time limit
5.Voltage and current safety control system

US

FCC,FDA,UL62368

EU

IEC/EN 60825-1, CE-EMC (Latest Version), CE-LVD (Latest Version), RED, IEC 62368-1

Support OS

/

Support Software

/

Support Format

/

Engraving Material

/

Cutting Material

/

ORTUR R2 Official Video

ORTUR R2 Unboxing & Installation

ORTUR R2 | Custom Design Feature on Official APP

ORTUR R2 | Laser Your Own Puzzle on Official APP

ORTUR R2 | A Code from The Heart on Official APP

Triangular Blade vs. Honeycomb Panel – Which Is Better for Laser Cutting?

ORTUR R2 LaserGRBL Software Tutorial

ORTUR R2 LightBurn Software Tutorial

ORTUR R2 | How to Make a Moon-Shaped Wall Light

No videos available at the moment

No videos available at the moment

How to make a Moon Wall Light

Triangular Blade vs. Honeycomb Panel

Open like a pro
