Why Can a Laser Engamer Create Color on Stainless Steel? The Science Behind the Magic

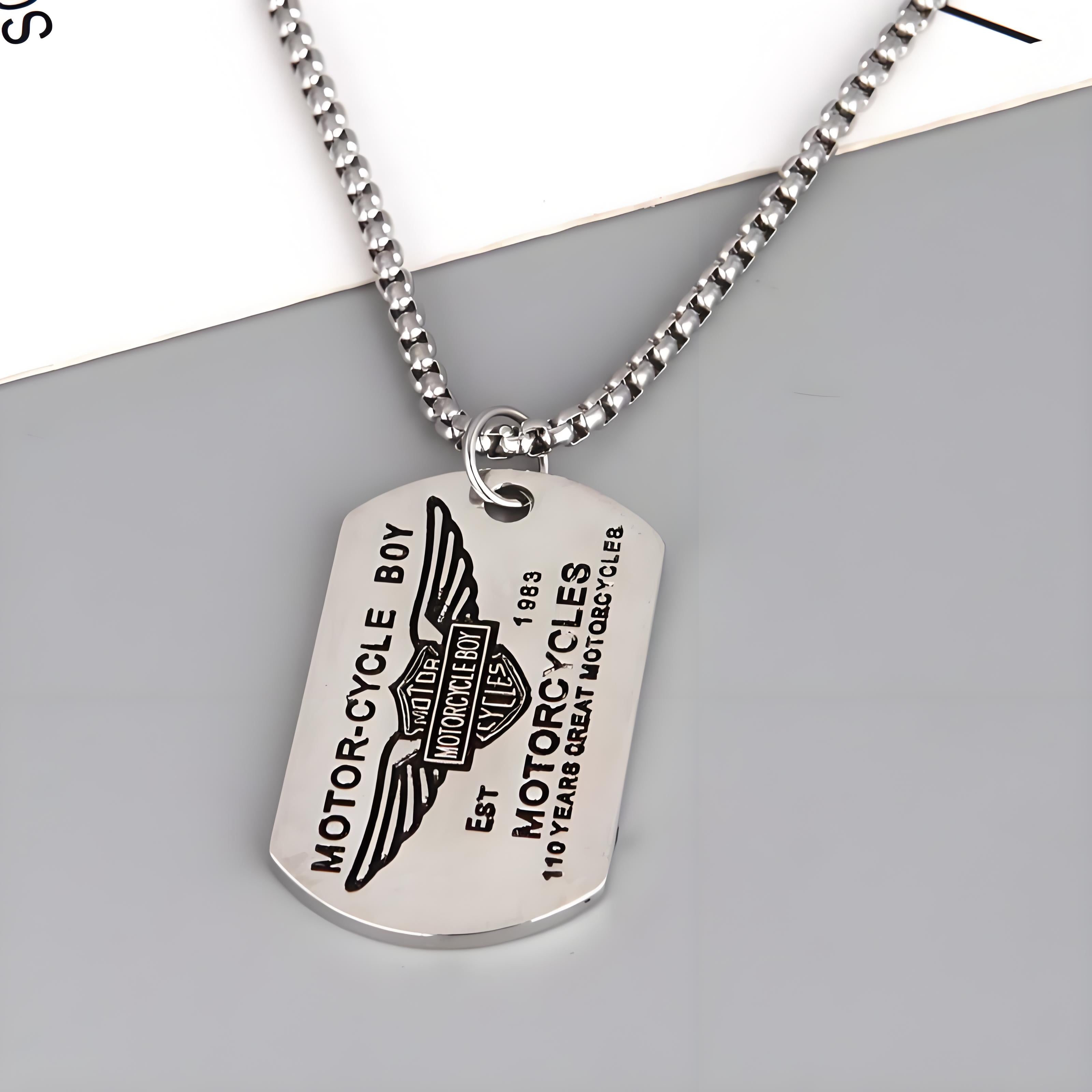

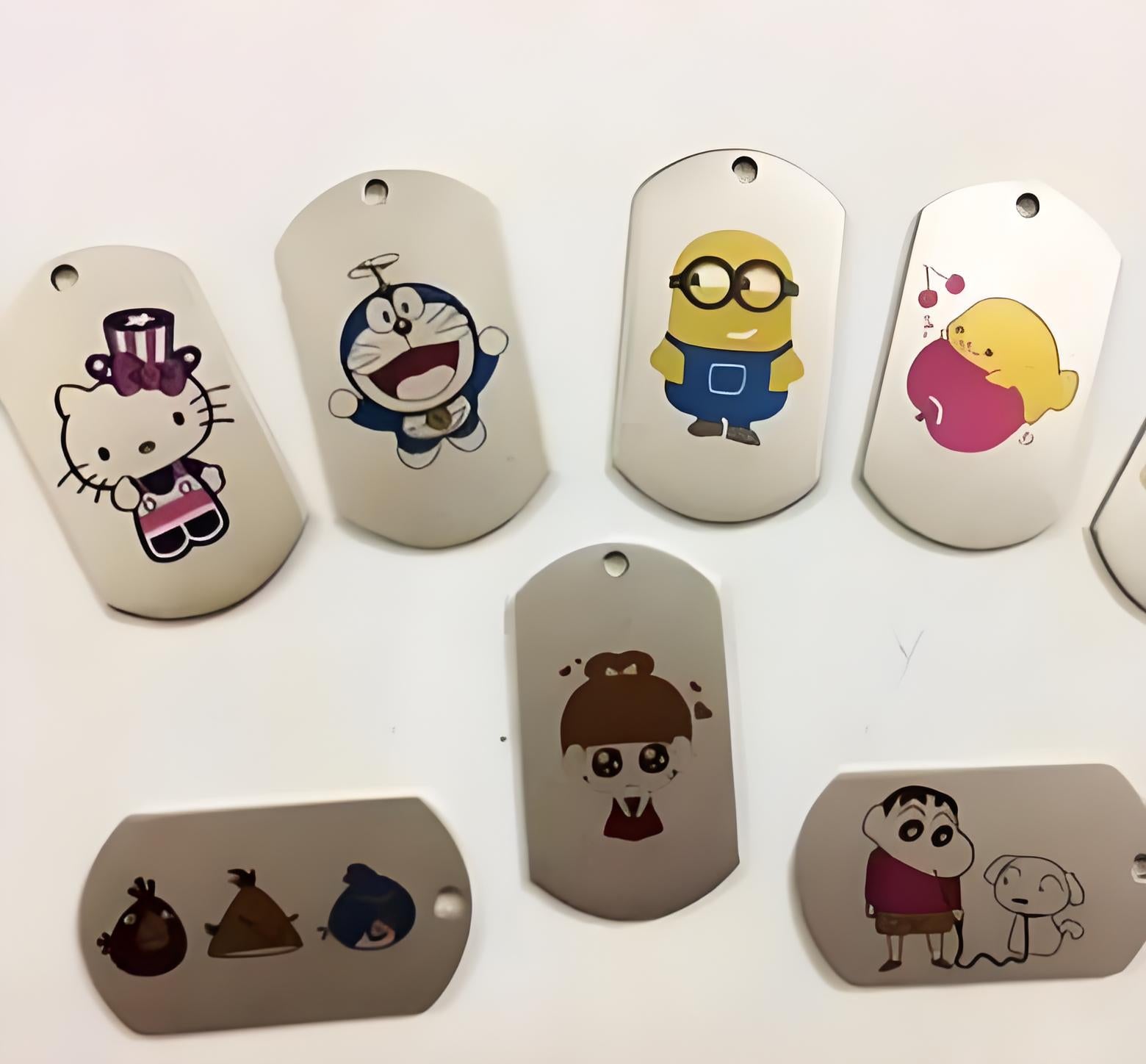

Have you ever seen colorful laser engravings on stainless steel? Those vibrant designs aren’t paint—they’re the result of light and metal working together like magic! Today, we’ll break down the science behind this fascinating phenomenon in the simplest way possible.

1. The Secret Behind Laser Color Marking

When a laser engraver marks stainless steel, it doesn’t burn away the metal. Instead, it precisely heats the surface, creating an optical interference effect that produces rainbow-like colors.

Key Principle: Thin-Film Interference

Think of sunlight reflecting off a thin oil film on water—it creates colorful patterns. The same physics applies to laser coloring on stainless steel!burn away the metal. Instead, it precisely heats the surface, creating an optical interference effect that produces rainbow-like colors.

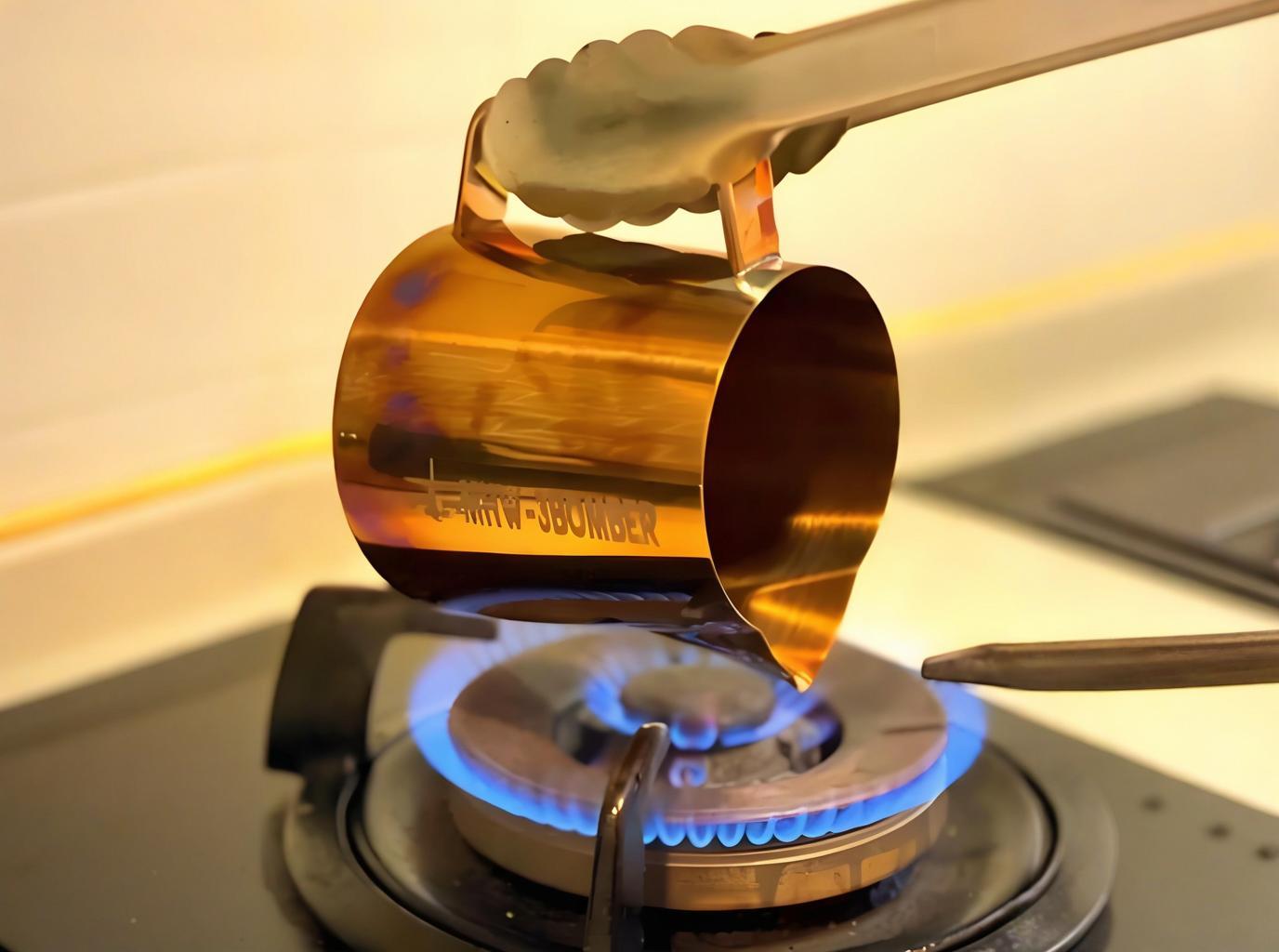

  1. Laser heats the surface: The laser beam briefly heats the stainless steel (between 200-600°C), causing chromium (Cr) on the surface to react with oxygen, forming an ultra-thin oxide layer (Cr₂O₃).
  2. Different thickness = different colors: This oxide layer is only nanometers thick (thousands of times thinner than a human hair!). Just like soap bubbles, varying thickness reflects different colors of light.
  3. Precision control = precision colors: By adjusting power, speed, and frequency, the laser controls the oxide thickness, "painting" different colors onto the metal.

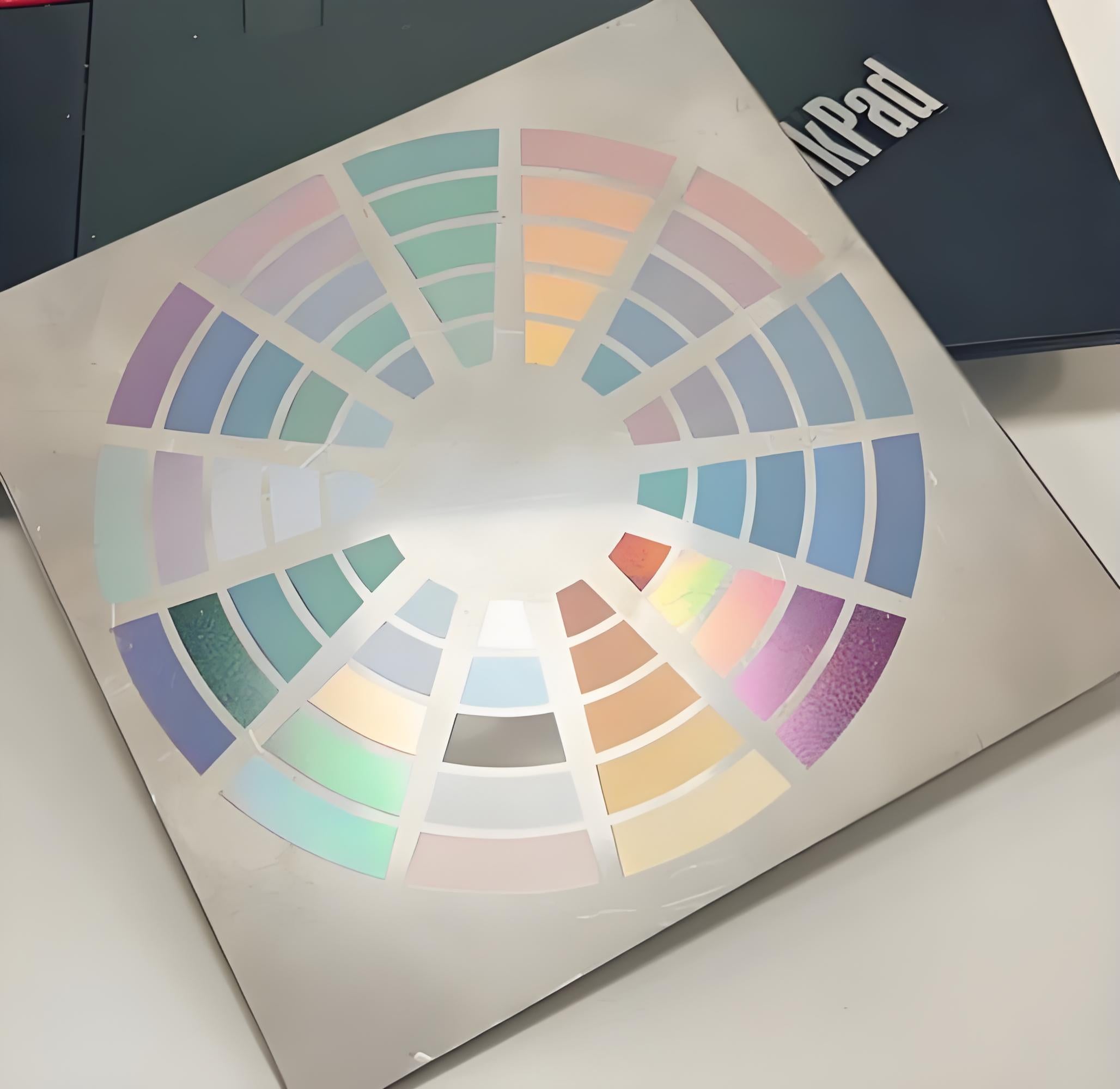

2. How Does the Laser "Mix" Colors? Temperature Decides!

The laser acts like a microscopic artist, tweaking energy input to create different temperatures—and different colors:

Laser SettingsTemp. RangeOxide ThicknessResulting Color



Laser Settings

Temp. Range

Oxide Thickness

Resulting Color

Low power + High speed

200-300°C

30-50 nm

Gold / Light Yellow

Medium power + Speed

300-400°C

50-80 nm

Purple / Deep Red

High power + Low speed

400-600°C

80-150 nm

Blue / Dark Green

Overheating (ablates)

>600°C

>150 nm

Gray/Black (engraved)



💡 Fun Fact: This effect is called "laser color marking" or "laser oxidation coloring"—no dyes, just physics!

3. Why Does Only Stainless Steel Turn Color?

Not all metals can be laser-colored. Stainless steel works because:
✅ Contains chromium (Cr): Forms a transparent oxide layer (Cr₂O₃), crucial for light interference.
❌ Aluminum & copper don’t work: Their oxides are opaque, only turning gray or black.

💡 Fun Fact: This effect is called "laser color marking" or "laser oxidation coloring"—no dyes, just physics!

4. Laser Color Marking vs. Traditional Methods

Comparison

Laser Color Marking

Traditional Printing/Plating

Durability

Permanent, won’t fade

Can wear off or peel

Eco-Friendliness

No chemicals, zero waste

Often uses toxic dyes/chemicals

Precision

Micron-level detail

Limited by printing/plating tech

Cost Efficiency

One-time investment

Requires repeat processing

👉 Why lasers win: Eco-friendly, permanent, ultra-precise—perfect for industrial marking, art, and high-end gifts.

5. How to Create Color Marks on Stainless Steel

Want to try it yourself? Adjust these settings：

  • Power: 20%-100% (too high = burns black; too low = no color)
  • Speed: 100-1500 mm/min (slower = deeper colors)
  • Focus: Keep the laser precisely on the surface (defocusing weakens the effect)

⚠️ Pro Tip: Different stainless grades (304, 316, etc.) react differently—test on scrap metal first!

If you are using a blue-light laser engraving machine with diodes, it is recommended to conduct the test with a power of 20W. If the power is lower than 20W, it may damage the laser module.

6. Real-World Uses of Laser Color Marking

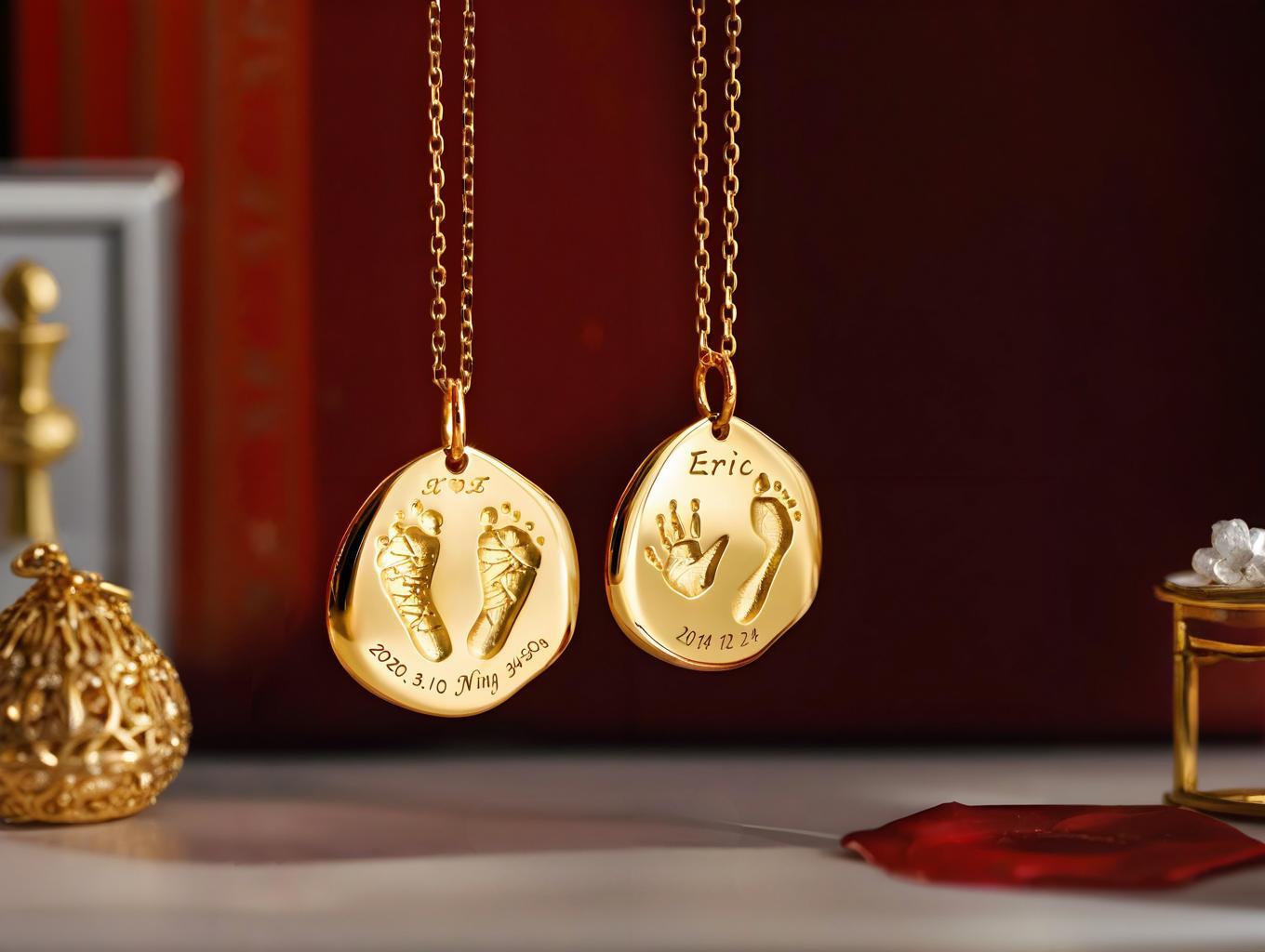

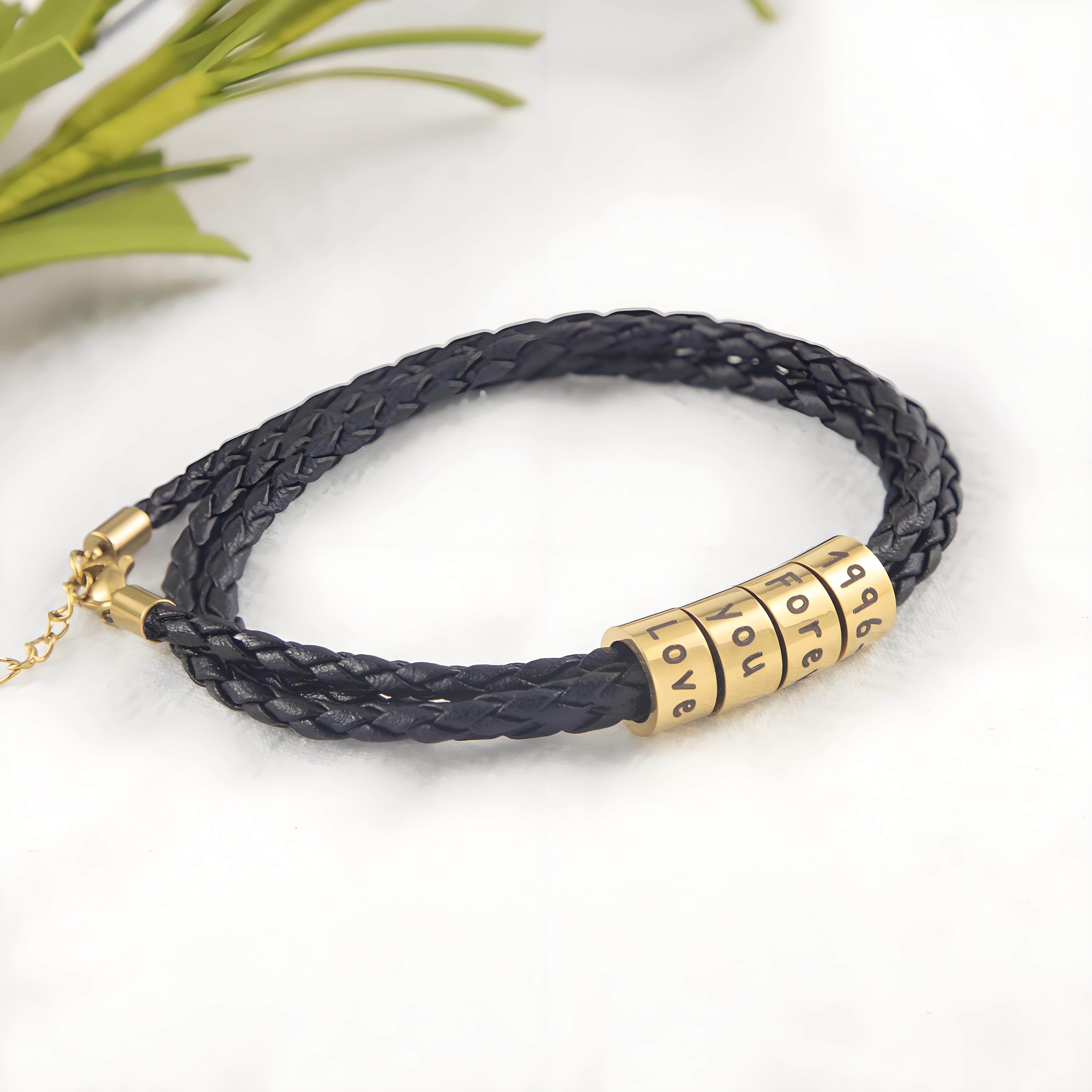

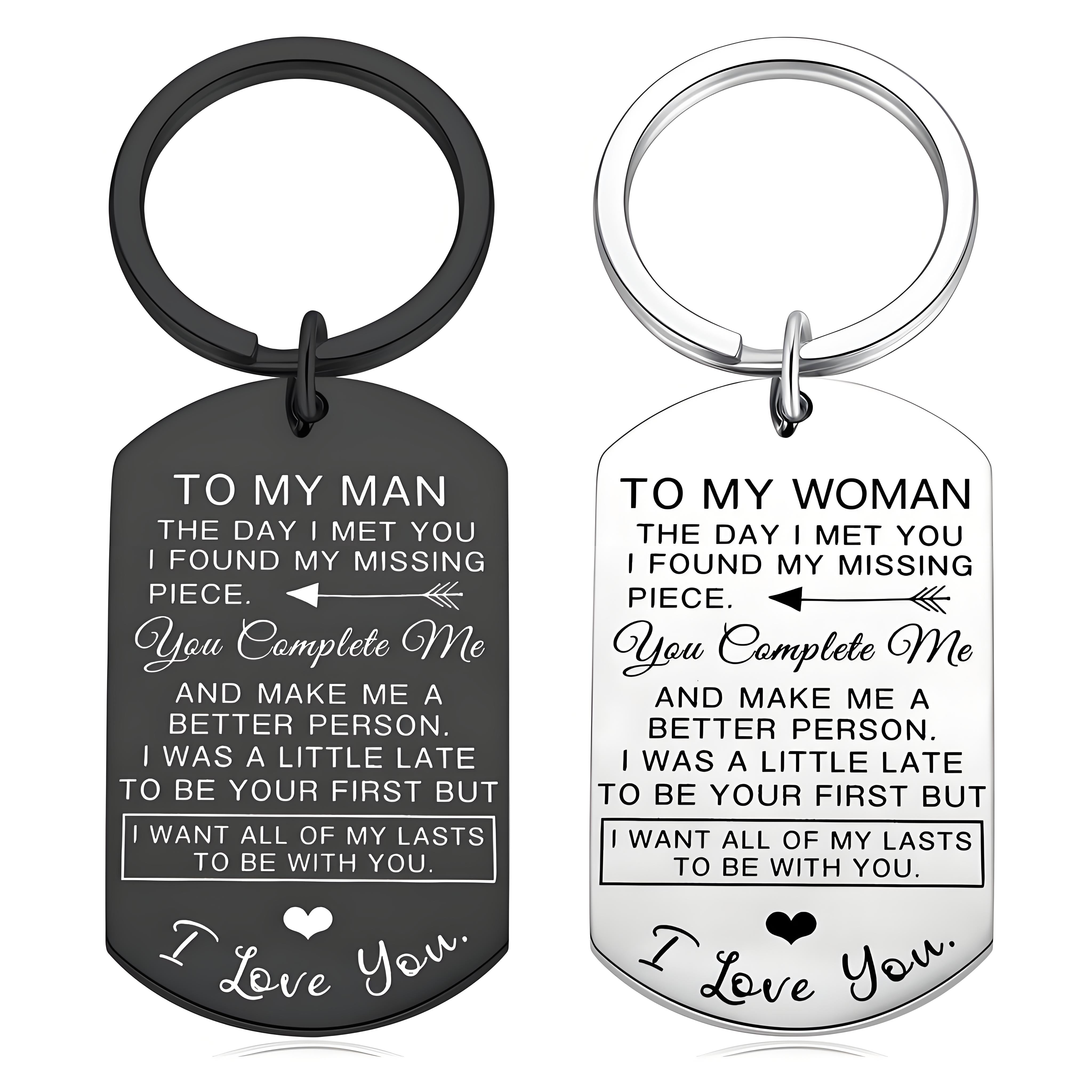

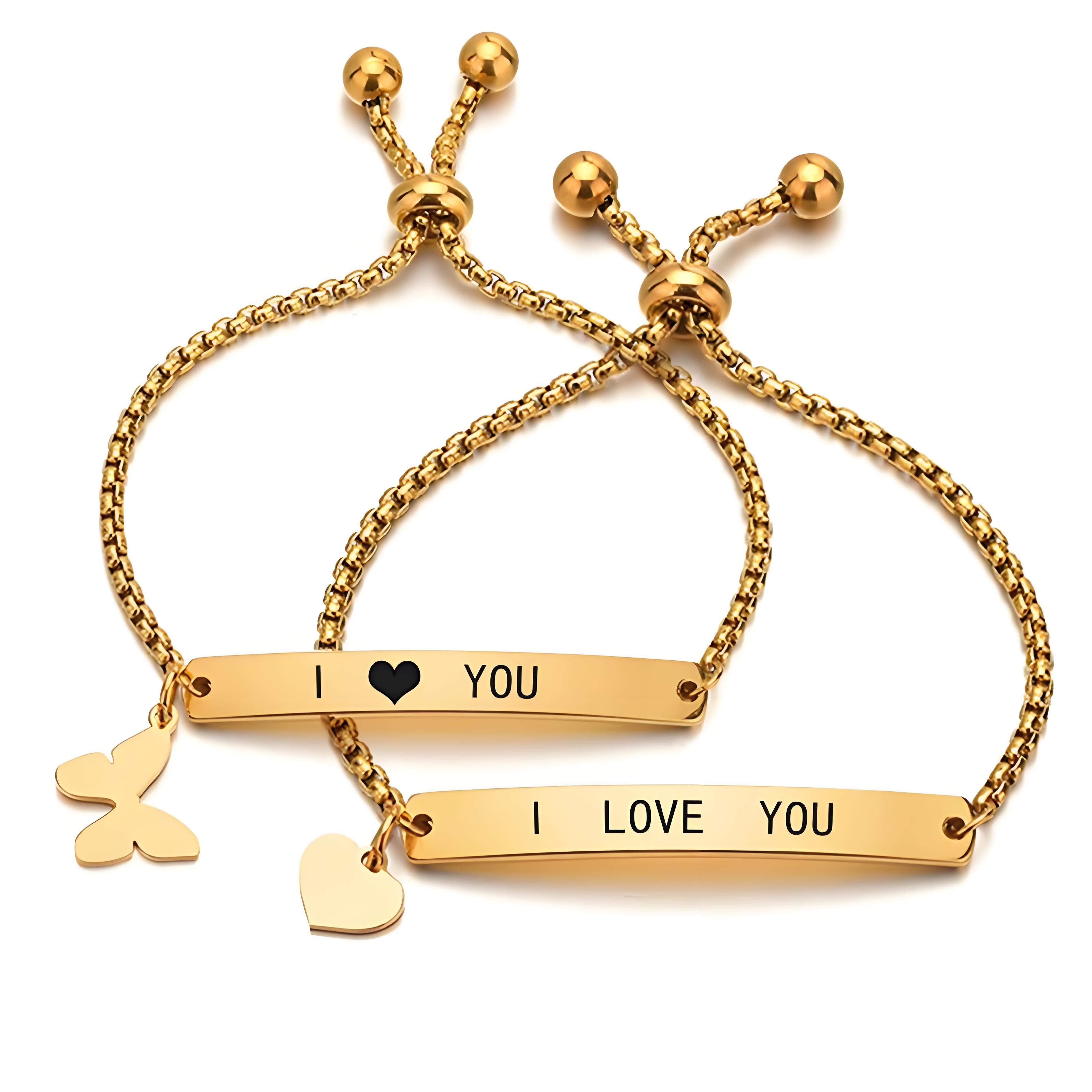

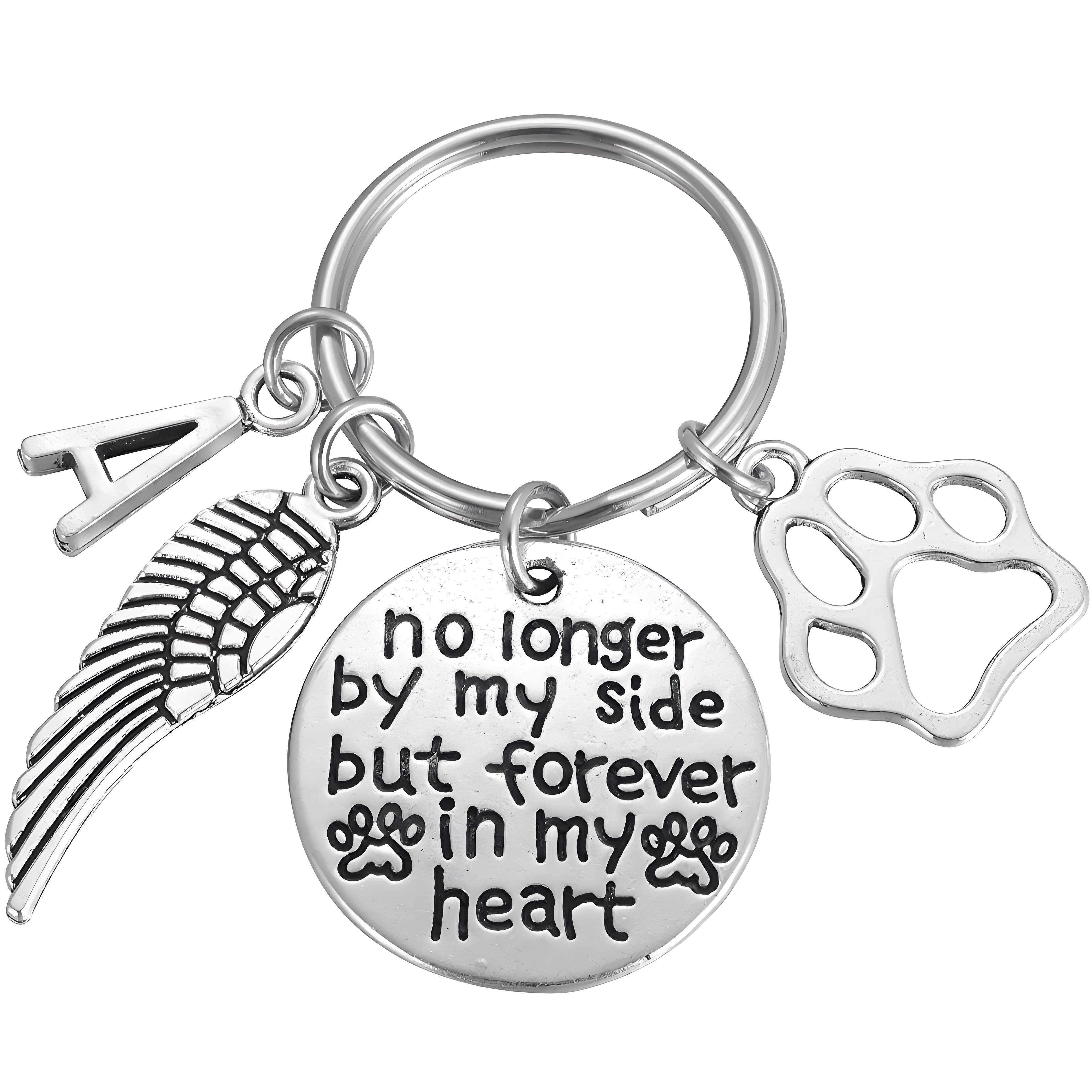

🎨 Art & Jewelry: Custom metal art, signature accessories
🏭 Industrial Tags: Medical tools, aerospace part coding
🎁 Luxury Gifts: Branded corporate awards, commemorative plaques
🔒 Anti-Counterfeiting: Hard-to-replicate serial numbers

The Bottom Line

Laser color marking on stainless steel isn’t magic—it’s light interference + precision heat control!
✅ How it works: Laser heats → Forms nano-oxide layer → Light reflects → Rainbow colors appear
✅ Why it’s better: Permanent, clean, ultra-detailed
✅ Works best on: Chromium-rich metals (stainless steel, titanium)

Next time you see colored metal engravings, you’ll know—it’s not paint, but science and lasers teaming up! �





🔍 Ready to Try It? If your laser supports color marking, play with settings and create your own metal masterpieces!

(Got questions about your specific laser? Drop them in the comments!)

The most highly recommended laser engraving machine for engraving metals.

For the ultimate metal engraving solution, we highly recommend the OLM3 laser engraver. Opt for the 20W or higher power model to ensure crisp, deep engravings on stainless steel and other metals. When equipped with the optional 1064nm laser module, the OLM3 achieves exceptional results on precious metals like gold and silver, as well as copper and aluminum - making it the most versatile engraving tool for both industrial and jewelry applications.

Product not found

✍️ By: Hall/Ortur
📅 Published: April 17th, 2025
🏷️ Tags: #LaserEngraving #MetalMarking #ScienceMadeSimple #DIYLaser
